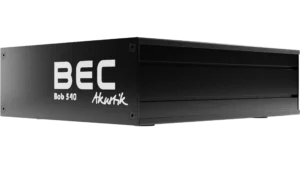

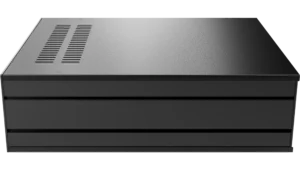

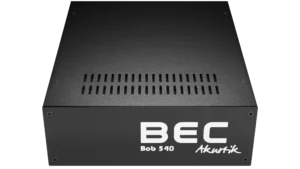

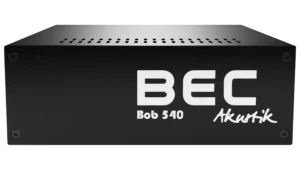

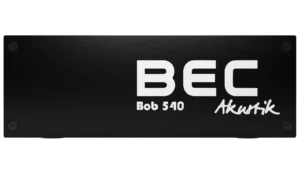

Amplifier Bob540

3 channel power amplifier in Class D technology

Technology

Data

Application

High quality and durable

Bob 540 is a 3-channel power amplifier developed and built in Germany. Even with other subwoofers and speakers, this power amplifier guarantees excellent sound. The cooling is passive, which is why you don’t hear any loud fans and overheating due to a possible failure is less likely.

The Class D amplifier is specially designed for the application of 2xIC speakers (L/R) and 2xFlatboyslim subwoofer (connected in parallel).

Bob540

High-quality 3-channel power amplifier

Amplifier Bob540

Characteristics

System
Hifidele 3 channel power amplifier installation power amplifier in Class D technology
Power (sin.) at 8 Ohm
3x120W
Power (sin.) at 4 Ohm
3x180W
Frequency response
20-35 kHz
Total – distortion factor
(20 Hz to 20 kHz) at 1W max. 0,02%
Attenuation factor at 8 Ohm/1kHz
250
Input impedance symm.
100kΩ
Input sensitivity
26dB/ 29db/32db/34db

Connections

Input
Phoenix 3-pole
Output
Phoenix

Housing

Housing material
Front aluminum
Color
Black
Height
2 U (88mm)
Wide
230 mm
Depth
280 mm
Weight
4kg
